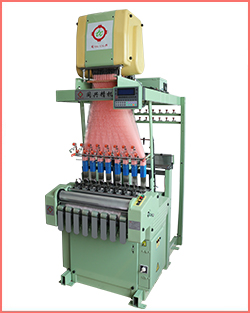

TX6/55,384Hooks Computerized jacquard machine

  • $

The computerized jacquard machine is a kind of textile machinery for the processing of various types of elastic and non-elastic jacquard fabrics. It features good stability, smooth feeding, easy commissioning and low maintenance frequency. Currently we have 128, 192, 240, 320, 384, 480, 640, 896 and 1280 hooks options for it.


  • 100% original items
  • Made in China
  • 100% payment protection

Model: TX6/55, 384hooks

Category: Computer jacquard machine

Feature: Energy save, easy operation

Payment: T/T,Alibaba Escrow,L/C,Western Union

Scope of supply: -Tool Box
                             -Beam Stand
                             -Change Gear Set
                             -Extra Parts


Product Description

We are the manufacturer and exporter of Computer Jacquard Machine.We have wide experience in Narrow Fabric Machine. We also offer an extensive range of Computer Jacquard Machine to our clients.This Computer Jacquard Machine is easy to install and operate. These Narrow Fabric Machine are manufactured from optimum quality raw material which is obtained from reliable names of the industry. We make these Narrow Fabric Machine available to the customers in varied sizes and specifications, in order to suit their exact requirements.

1. This jacquard weaving machine uses the lates computer-controlled jacquard head and double speed motor.

2. The jacquard machine adopts link-type rotation instead of the tranditional belt-type rotation to avoid missed stitch caused by loose or broken belt.

3. The weft feeding is conducted by belt. The feeding mechanism features steady speed, long life and low depreciation rate.

4. This jacquard loom adopts toothed belt transmission. It is able to work normally without misplacement when running at a high rotationg speed.

5. The jacquard machine is completely closed to prevent dirt from entering the internal part. So it only requires to be lubricated for a few times a year.

6. USB connection is available. The USB storage and service life are dozens of times more superior than that

7. Stable operation is guaranteed by high quality body parts and advanced electronic control system.

Technical parameters

Spec. \ Model 2/165 2/110 4/80 6/55 8/45 8/35 10/25
128Hooks Optional. Opt. Opt. Opt. Opt. Opt. Opt.
192Hooks Opt. Opt. Opt. Opt. Opt. Opt. Opt.
240Hooks Opt. Opt. Opt. Opt. Opt. Opt.
320Hooks Opt. Opt. Opt. Opt. Opt.
384Hooks Opt. Opt. Opt. Opt. Opt.
480Hooks Opt. Opt. Opt. Opt.
640Hooks Opt. Opt. Opt. Opt.
Machine Width 610mm 610mm 610mm 610mm 610mm 610mm 610mm
Heads/line 2 2 4 6 8 8 10
Reed width 165 110 80 55 45 35 25
Shaft frame 6 6 8 8 8 8 8
Pick repeat 8-48 8-48 8-40 8-40 8-48 8-40 8-40
Motor power 2HP 2HP 2HP 2HP 2HP 2HP 2HP
R.P.M 600-800 700-900 700-900 700-900 800-1000 800-1000 800-1000

Package: ocean standard Non-fumigation wooden case
Net Wegith: 950kgs
Gross Weight: 1050kgs
Measurement: 2(L)x1(W)x2(H) cbm

Minimum Order Quantity: 1 Sets
Port of Dispatch: Shenzhen or Any
Delivery Time: As per Order
